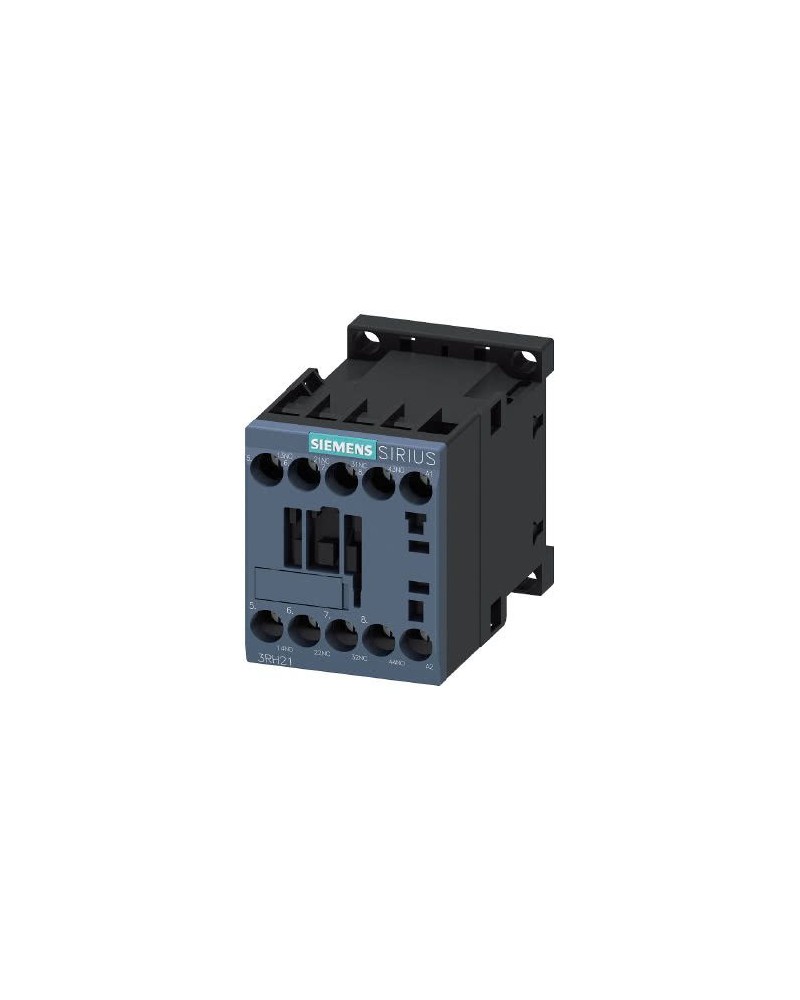

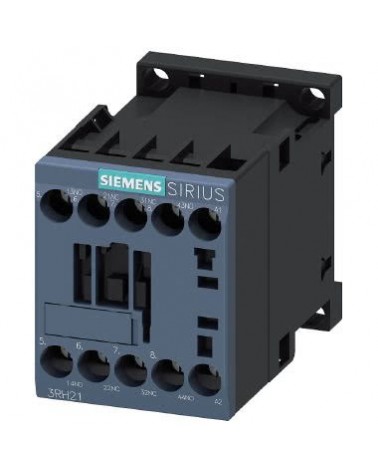

Contactor relay with finger protection and weatherproofing. RC elements, varistors, diodes, or diode assemblies (combination of a diode and a Zener diode) can be inserted into all contactor relays to reduce spikes in the coil upon opening. Size S00 High contact stability at low voltage and current Can be used with solid-state circuits with currents 1 mA at a voltage of 17 V Expandable up to four contacts by plug-in auxiliary switch blocks Coil voltage 230 VAC Number of poles 4 Rated contact current 10 A Normal state configuration 2 NO + 2 NC Nominal contact voltage 690 V a.c. 3RH2 Series SIRIUS Innovation Range Terminal type Screw Width 45mm Depth 73mm Length 57.5mm
